DIY Solar Battery Backup with Solar Panels + Diagram

This DIY solar system with battery storage expands the DIY home battery backup system without solar.

This system adds solar panels to make it a complete off-the-grid system. We call this kind of system a DIY solar battery backup or a DIY home solar battery system.

However, it’s still a small system used to run your refrigerator, well pump, or several lights during a blackout. It’s not meant to be used continuously. This system is ideal for preppers or emergency preparedness.


Explanation of the Solar System

Selecting the Solar Panels

The solar panels should charge the battery in one day. In most locations, the amount of sun hours per day is 3. Remember that our usable battery capacity was 600wh? If we divide 600wh by 3 hours, we become 200 Watts. So we need 200 Watts worth of solar panels to recharge the battery in one day. To keep the installation portable and the current low, we will use two 100-watt solar panels. The solar panels can be from any manufacturer like santansolar or renogy.

Selecting a Fuse for the Solar Panels

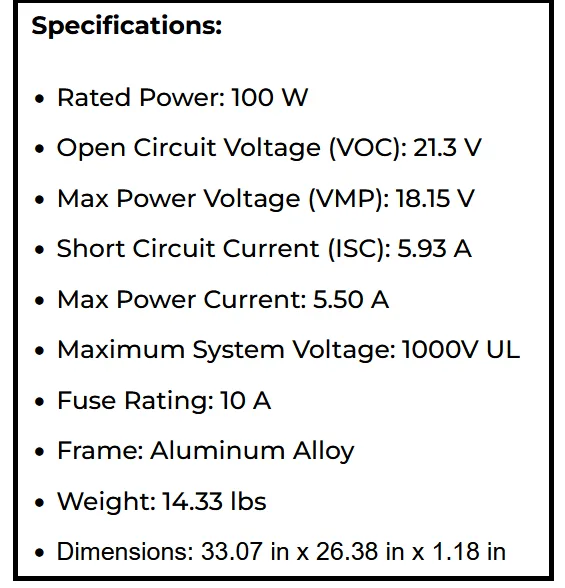

We need a fuse between the solar panels and the charge controller. The size of the fuse will be indicated on the solar panel specifications. In this case, the maximum series fuse is 10Amps. We will use a 10A MC4 fuse.

Wiring the System

Next, we will wire the solar panels to the existing system. As you can see on the schematic, the two solar panels are wired in series. That means that the negative of the first panel is connected to the positive of the second panel. If we do that, we will have one positive and one negative wire. After we have attached the 10A MC4 fuse, we can put both ends into the MPPT charge controller.

Calculating the Voltage Drop

The wires from the solar panels to the charge controllers will be longer than other wires in the system. That’s why we need to do a voltage drop calculation. I have made a video about why we must do this.

We will multiply the open circuit voltage of the solar panel by two because we have two panels wired in series. This adds up the voltage. Check out my video about wiring in series or parallel for more information on why we wire in series.

We now become 42,6Volts. The current stays the same at 5,93Amps. Now we have everything we need to calculate the voltage drop except the distance to the charge controller. I will calculate two wire lengths, one 25 feet, and one 40 feet. As a rule, you must keep the total voltage drop under 3 percent. In example one, we need a 16 gauge wire; in the second example, we will need a 14 gauge wire. In reality, there are only 10, and 12-gauge extension wires sold online, so we will use a 12-gauge cable with mc4 connectors.

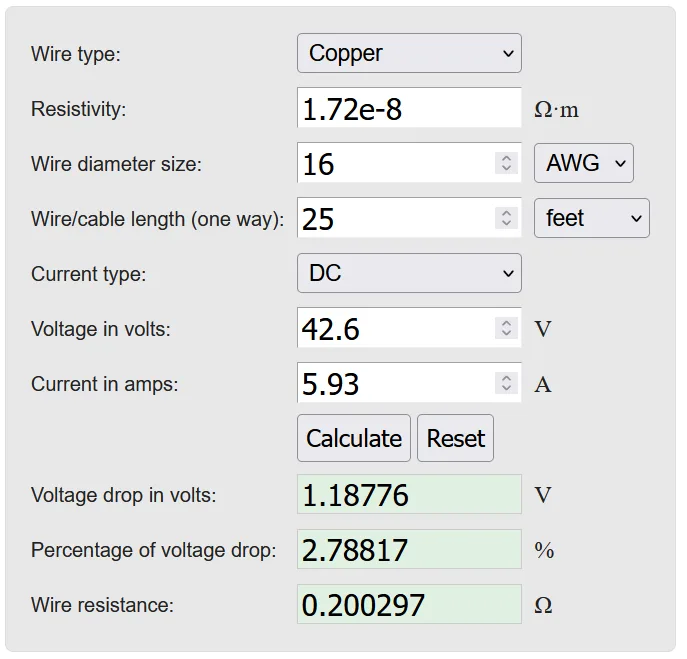

16 AWG wire

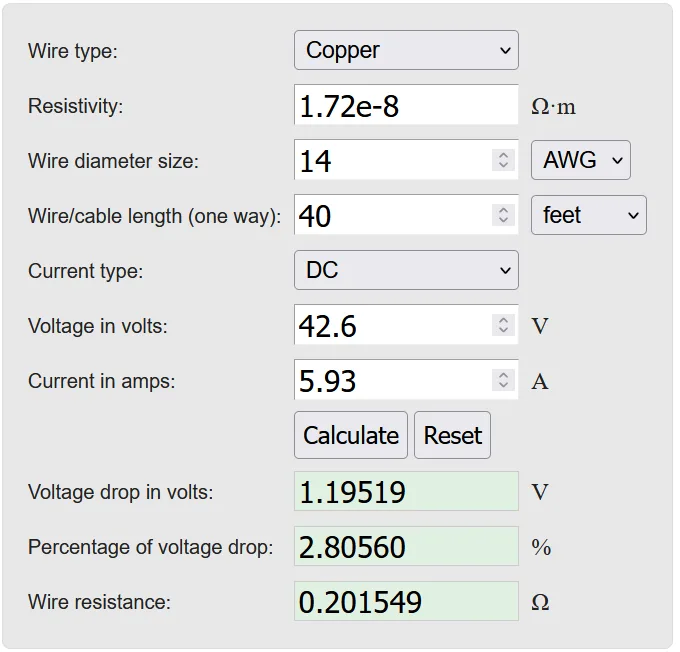

14 AWG wire

Adding the Charge Controller

Now we need to select the charge controller. We have to calculate two things here.

  1. The first is the current to the battery,
  2. The second is the maximum input voltage of the charge controller

If we divide 200W of solar by 13V charging voltage, we become 15.4 amps. We must multiply this by a safety factor of 1,25 to become 19,25 amps. We can use a 20 amp charge controller.

The total voltage of the two panels is 42,6Volts. We also have to multiply this by a safety factor of 1,25 to become 53,25V. This is under 100V. Combining these two values, we can select a charge controller that is 20Amps with a maximum input voltage of 100volts.

Selecting Charge wire and Fuse

Lastly, we must select the wire from the charge controller to the battery. The charge controller will put a maximum of 20 amps into the battery, so we need a wire that can handle 20Amps.

To calculate the minimum fuse size, we have to calculate the current that goes through the wire, which is 20amps. We multiply that by the 1,25 safety factor to become 25Amps. The wire can be 12 gauge, but since there is no 25Amp fuse, we have to use 10 gauge.

The maximum fuse for a 10 gauge cable is 35A. Now we need to choose a fuse that is in between these two. We will use a 30A fuse. The maximum length will be 6ft. Keep this distance as short as possible.

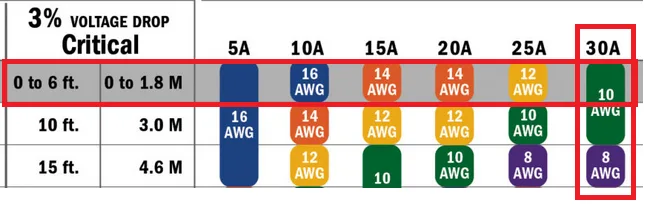

Selecting a 30A fuse for 10 AWG


The total cost for this system is everything from the previous video, plus the extra components we have added to this system. These are:

  • Two solar panels for a total of 180 dollars.
  • 20 feet solar extension cable for 23 dollars,
  • An inline mc4 fuse for 16 dollars,
  • A 20a charge controller for 80 dollars,
  • 10 gauge battery cables with fuse holder for 15 dollars

We have 314 dollars plus 304 dollars from the previous installation. The total for this system is 622 dollars. The links to these parts are at the top of this page.


You now have made a DIY home solar battery system. Adding a few solar panels to an existing system is relatively easy.
