Best RV Battery Monitor

When we want to purchase a battery monitor for an RV, we need to look for the following features:

  • Battery percentage
  • Power draw in and out
  • Voltage
  • Bluetooth Compatibility
  • Shunt current

Here is a comparison table of my best battery monitors:

 Best Overall  Best Premium Option Alternative Choice
Aili
Victron BMV-712 Smart
Renogy
Best overall battery monitor for the price. Easy installation and good display. Best premium option comes with display and bluetooth app. Best alternative choice for a mid-level price and bluetooth.
Shows Battery % Shows Battery % in app (display optional) Shows Battery %
Shows power in and out Shows power in and out Shows power in and out
8-100VDC 6.5-95VDC 10-120VDC
No Bluetooth Bluetooth Optional Bluetooth
350A 500A 500A
Best price/quality Best Premium Choice Best budget with Bluetooth
Mounting hole 2.1″ Mounting hole 2.1″ 3.9″ x 2.4″

Let’s look at each of them in detail.

Best RV Battery Monitors

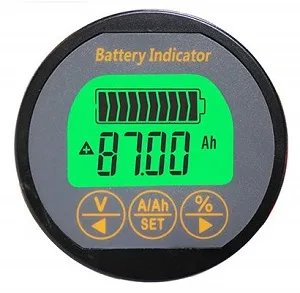

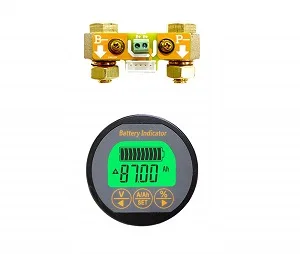

Best Choice – Aili 350A

The AiLi Battery Monitor Voltmeter Ammeter is a versatile device that simultaneously measures and displays battery percentage, voltage, current, power, and energy. It’s known for its high precision, with voltage detection precision reaching 0.01V and current detection precision reaching 0.01A.

This monitor is compatible with a wide range of battery systems (12V/24V/36V/48V/60V/72V/84V/96V) and draws its working power supply directly from the battery it’s measuring. One of its standout features is its large LCD screen, which provides clear readings and an easy user interface.

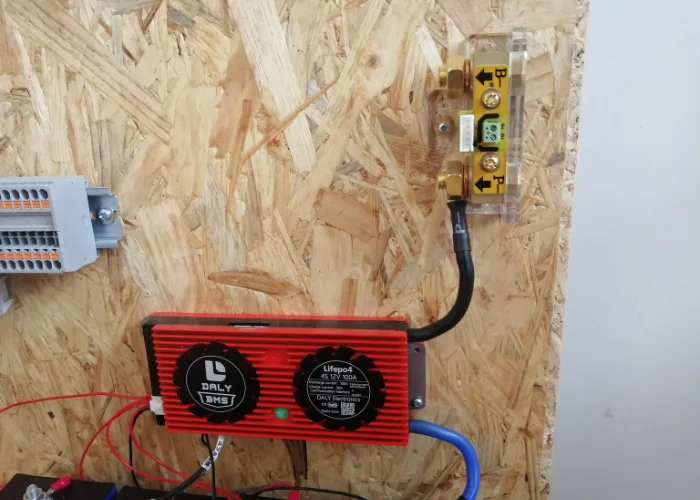

aili battery monitor for RV and caravans (shown without display)

The AiLi Battery Monitor is designed to monitor battery systems with capacities of up to 999 Amp hours and can measure currents up to 350A. It continuously monitors a variety of parameters, including voltage, current (charge or discharge), number of amp-hours (charge or discharge), the state of charge, and the time to go (autonomy). It also stores historical event data, including max and min voltages, max currents, max power, etc.

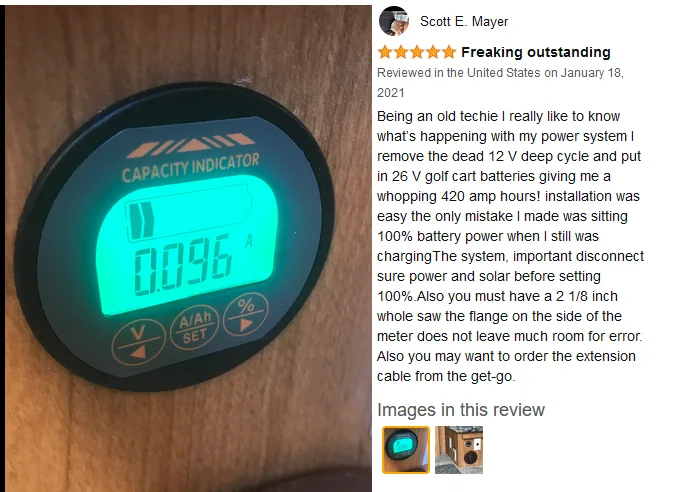

amazon review for the aili battery monitor

Affordable and with a high customer rating of 4.5 out of 5 stars based on 1,019 reviews, the AiLi Battery Monitor offers a blend of functionality, precision, and value.

I have used this battery monitor in many installs and am pleased with it. It’s easy to use and has a great price.

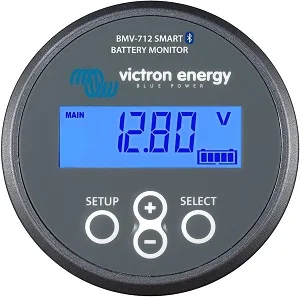

Premium – Victron BMV 712 Smart

The Victron Energy BMV-712 Smart Battery Monitor is a high-precision device designed to calculate ampere-hours consumed and the state of charge of a battery. It integrates the current flowing in or out of the battery to calculate this.

One of the standout features of the BMV-712 Smart is its built-in Bluetooth communication, allowing you to monitor your batteries on Apple or Android smartphones, tablets, and other devices. It’s also easy to install with all electrical connections to the quick-connect PCB on the current shunt and easy to program with a detailed setup menu. You can also connect the monitor to VE bus (manual).

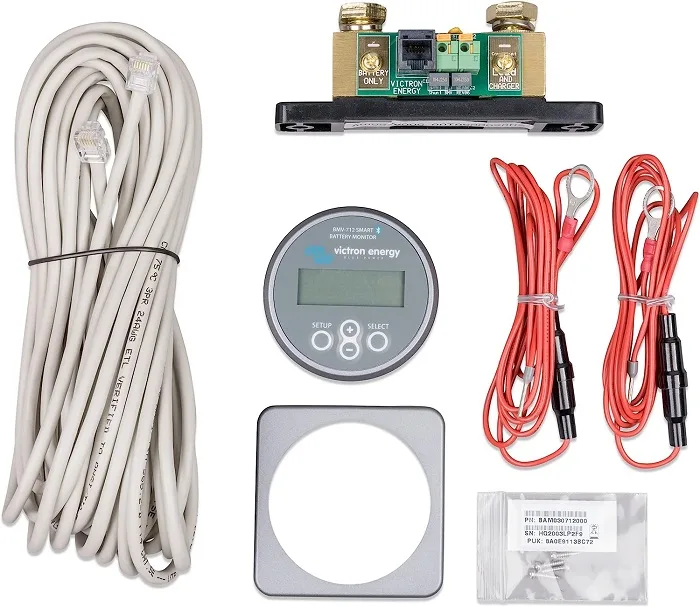

victron bmv-712 battery monitor shunt and display

The monitor provides a range of standard features, including battery voltage, current, power, ampere-hours consumed, and state of charge. It also includes a programmable visual and audible alarm, a programmable relay, and a VE.Direct communication port. The device has a wide input voltage range of 9.5 – 95V and a high current measurement resolution of 10 mA (0.01A).

The product dimensions are 2.32 x 1.38 x 2.6 inches, weighing 8.8 ounces. It has received high customer praise, with a rating of 4.8 out of 5 stars based on 1,068 reviews.

What is included in the box:

If you don’t need Bluetooth, the Victron BMV-712 will be your best RV battery monitor.

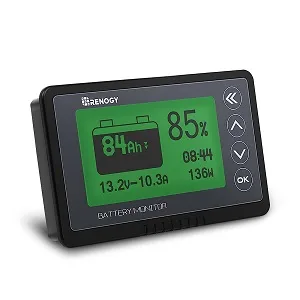

Alternative Choice – Renogy 500A

The Renogy 500A Battery Monitor is a valuable addition to any DIY solar system, providing high-precision monitoring of your battery bank. It identifies the current, voltage, and power going in and out of your battery bank, giving you a comprehensive overview of your system’s status. This includes the power used and the remaining battery capacity, eliminating any guesswork from battery usage.

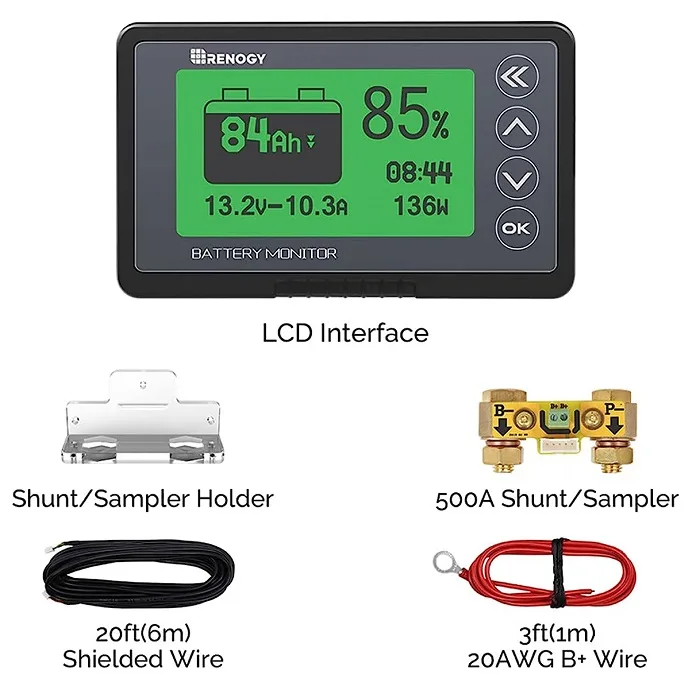

renogy 500a rv battery monitor what in the box

One of its key features is the high and low-voltage programmable alarm. This alarm alerts you when your battery bank’s voltage falls below or rises above your programmed high/low voltages, ensuring the safety and longevity of your system. The monitor also features a large backlit LCD screen that displays all vital information, including Amps, Voltage, Watts, Percentage of charge, and Watt Hours, making it easy to understand your system’s status at a glance.

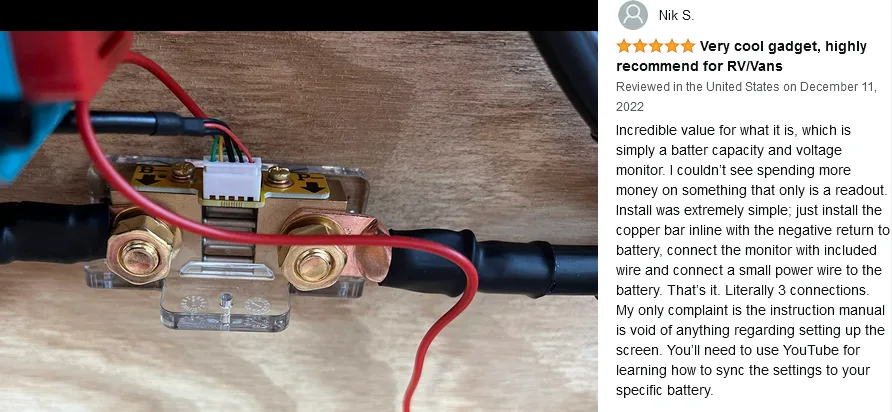

Amazon review of the Renogy battery monitor

The Renogy 500A Battery Monitor is also easy to install, with the shunt connected in series with the negative battery terminal. It boasts a wide voltage range, compatible with systems from 10V up to 120V, and is compatible with various types of batteries, including Lithium, Sealed, Gel, Flooded, and more. With a rating of 4.4 out of 5 stars from over 1,073 reviews, this monitor is a reliable choice for those looking to buy a battery monitor.

If the Aili battery monitor is unavailable and you don’t need Bluetooth, then the Renogy battery monitor will be your best choice.



Wiring diagram

Wiring a shunt battery monitor involves a few steps, and it’s important to follow them carefully to ensure a safe and effective setup. Here’s a general guide on how to do it:

  1. Identify the Components: The main components you’ll be working with are the battery, the shunt, and the battery monitor. The shunt is a device that allows the monitor to measure the current flowing in and out of the battery.
  2. Connect the Shunt: The shunt should be connected to the negative terminal of your battery. This is because the shunt measures the current by detecting the voltage drop across it, and this works best when connected to the negative side. Connect B- to your battery negative and P- to your busbar.
  3. Wire the Battery Monitor: Connect the display to the shunt. This is usually done using a cable that connects to a port on the shunt and then to the monitor. The exact method may vary depending on the model of your monitor, so it’s a good idea to consult the user manual. Take a small wire and connect it to the positive side of the battery and bring it to B+.
how to wire a shunt diagram

Learn more about what a shunt does here.
