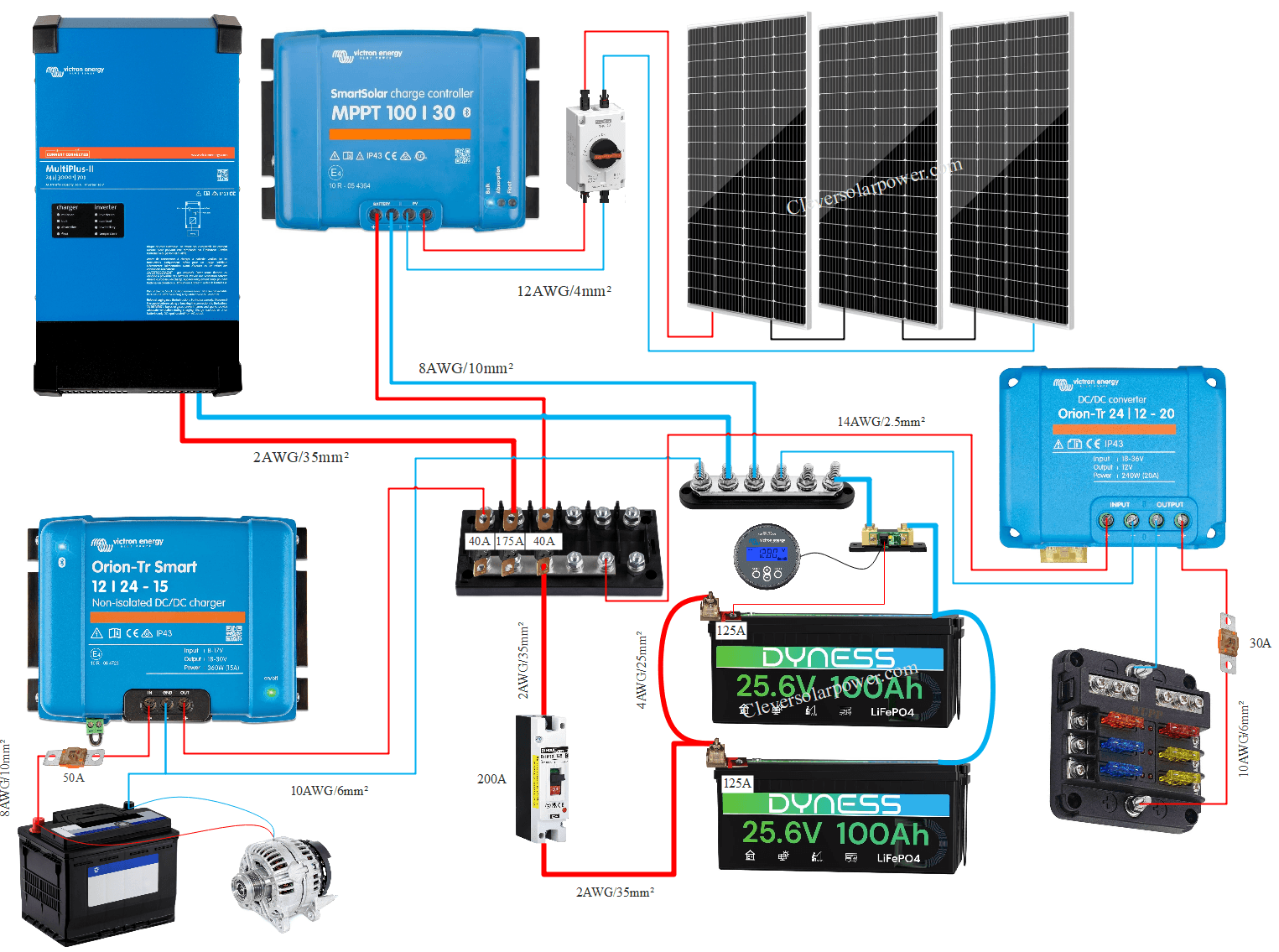

Campervan 3000W Inverter 24V Battery

Parts used

• 24V 3000VA multiplus 2 amazon or currentconnected (recommended)
• 24V 100Ah LiFePO4 Battery
• Victron orion TR-Smart 12/24 15A
• MPPT Charge Controller
• 200W Solar Panels
• Orion Tr 24/12 20A
• MCCB
• MEGA Fuse Busbar
• Negative busbar
• MEGA Fuses (40A version)
• MIDI Fuses
• MRBF Terminal
• MRBF Fuses
• 12V DC Fusebox
• Welding cable
• THHN wire
• Grounding wire
• Shunt BMV 712
• PV Disconnect switch

Alternatively:

• 24V 3000W Giandel inverter
• 24V 30A Battery charger

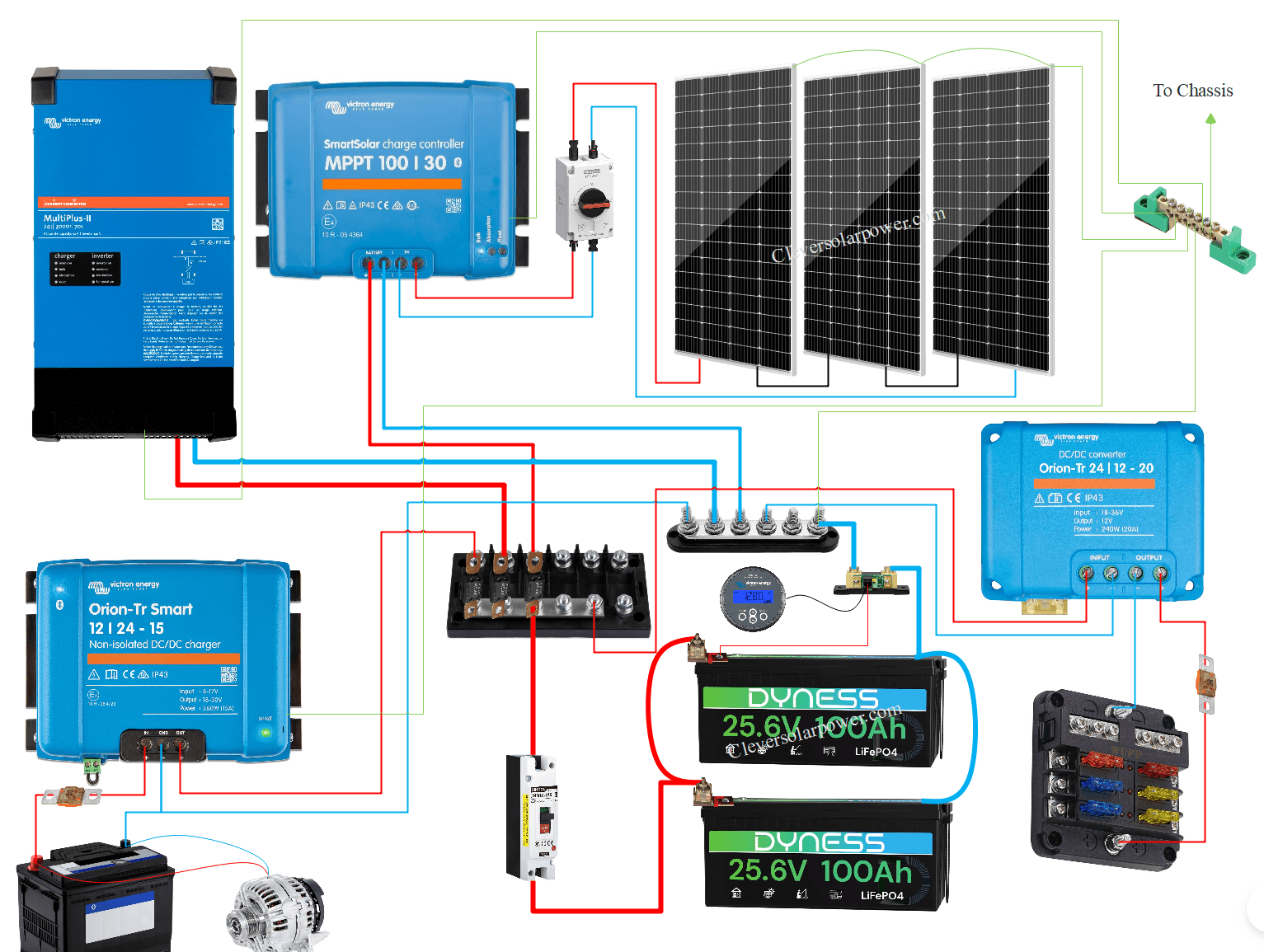

Grounding

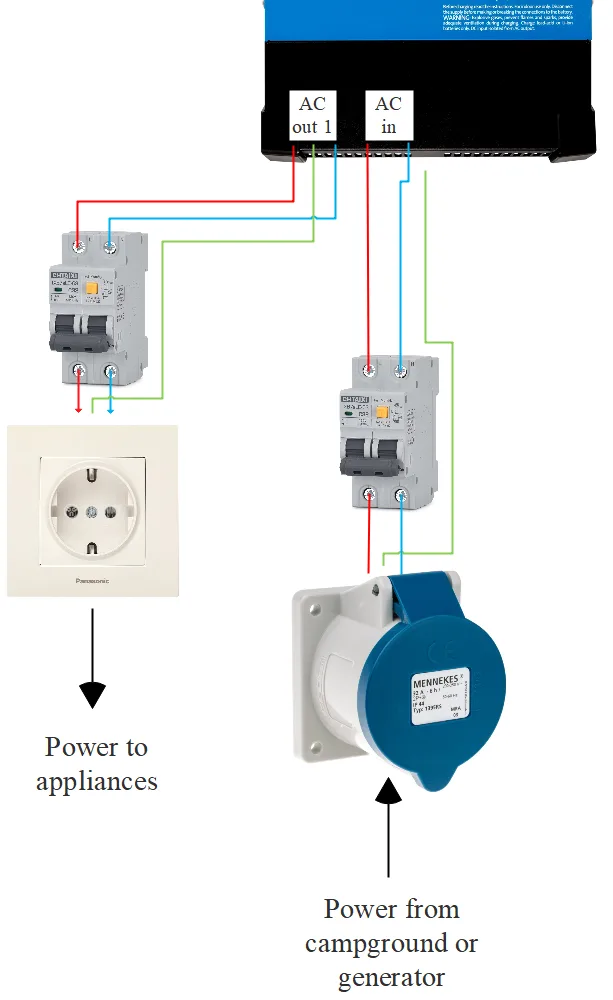

AC in and out
