This system is perfect for a small cabin.
3,000W of solar panels, a 10kWh battery and a 3000VA inverter.
AC Distribution box with a GFCI and 20A circuit breaker is enough to power your loads.
For winter we have a generator which recharges the battery in one day.

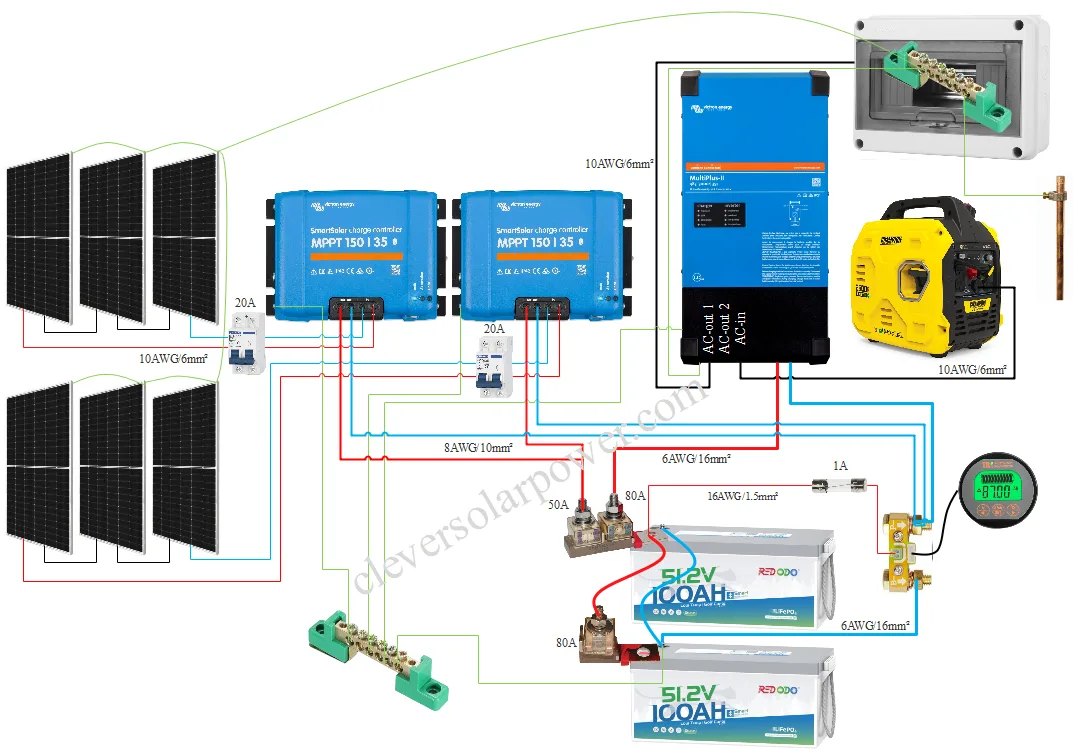

UPDATE: The price of 150/35 MPPT has come down, in my video i show to use inline MC-4 fuses and a Y-combiners. I have now updated the diagram to include two MPPT’s.
Components
- 6x 415W Solar Panels
- Victron MultiPlus 48/3000VA
- 2x Victron 150/35 Charge Controller
- 2x 20A DC breaker (solar disconnect)
- Champion Generator (dual fuel version)
- 2x 48V 100Ah Batteries or on Amazon
- MRBF Fuse holders (1 stud) and (2 stud) with 80A fuse + 50A fuse
- 20ft red + 20ft black 6AWG Cables + lugs
- 20ft red + 20ft black 8AWG Cables + lugs
- AC Distribution Box
- Shunt
- Grounding busbar
- 2x 50ft 10AWG PV cable
- 32A GFCI
- 20A AC breaker

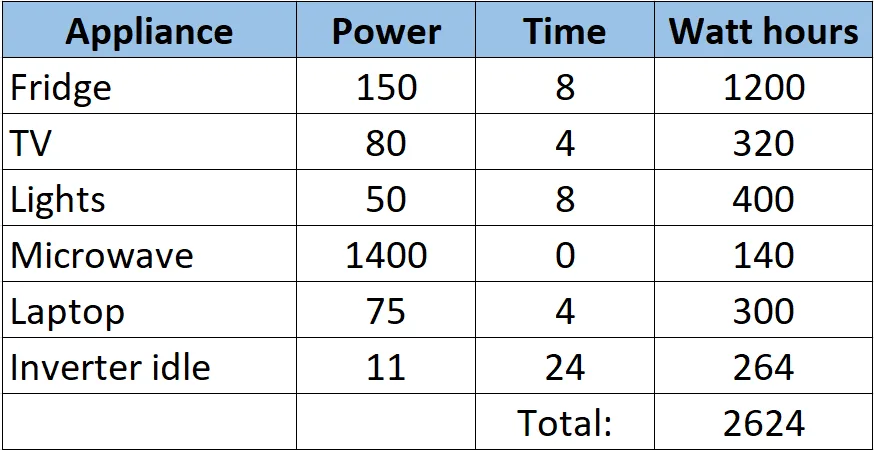

This is the daily load analysis for this system to make it run as intended.
Video about the system:
